CH1400C capper

Build: 50mm x 50mm welded stainless steel
Size: Approx 1200mm x1200mm x 2300mm
Supply: 240V AC 10A Single Phase (Standard Spindle)
Air: 6Bar 50Lt/Min average
Capacity: 200ml to 20Lt
Speed: 10 - 60 ppm (Packs Per Min) Subject to customer bottle specs
Conveyor: Suit standard 900mm from floor conveyor

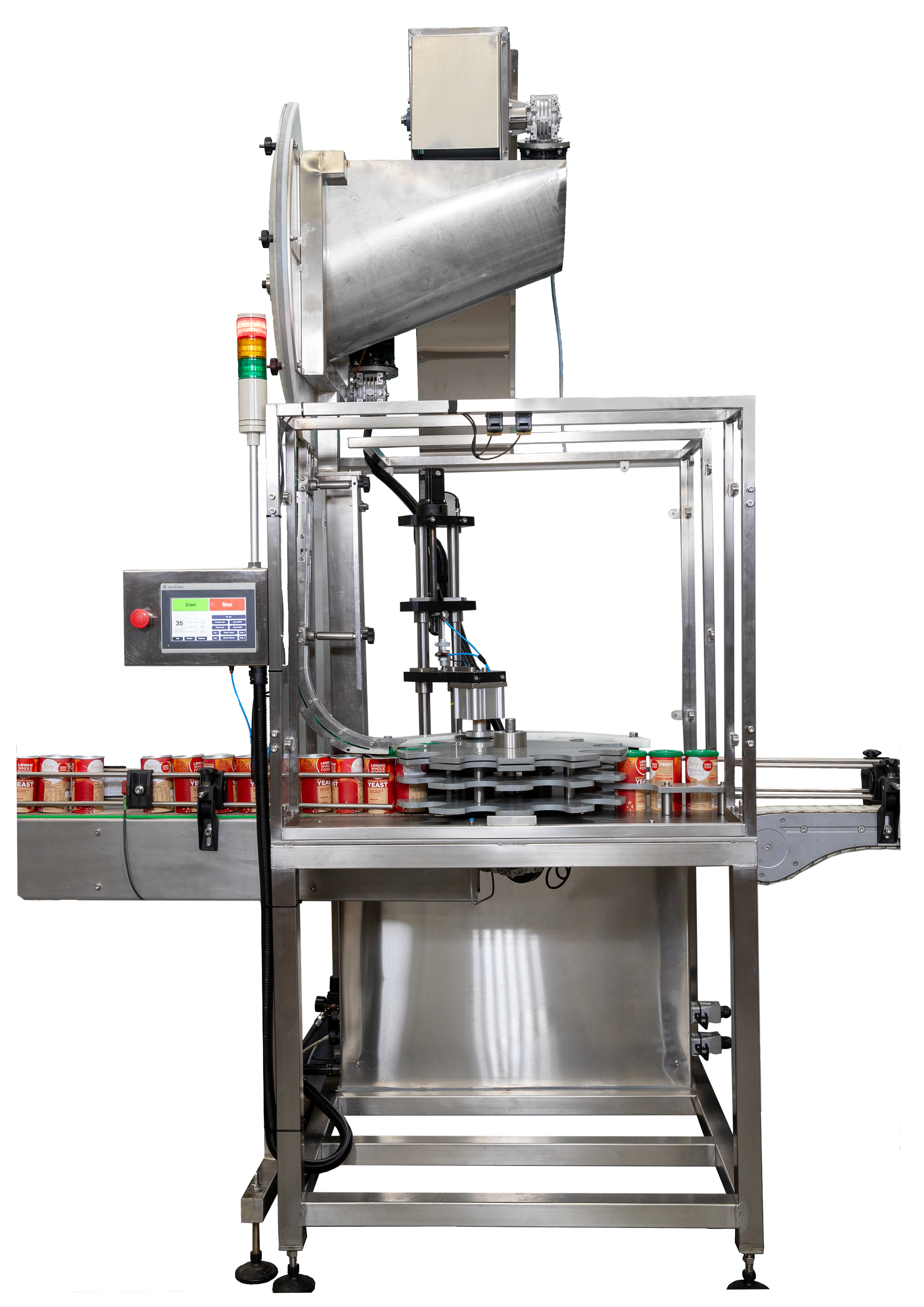

CP2000 Composite Pack

Build: 50mm x 50mm welded stainless steel
Size: Approx 1000mm x1000mm x 2400mm
Supply: 240V AC 10A Single Phase
Air: 100psi/6Bar 20Lt/Min average
Pack type: Zipform style composite packs with paper or plastic lid types
Speed: Up to 50 packs per minute (subject to pack design)
Conveyor: Suit standard 900mm from floor conveyor(required for operation)

CTS15 cap tightener

Build: 50mm x 50mm welded stainless steel body, 25mm x 25mm guards
Size: Approx 1000mm x700mm x 1650mm
Supply: 240V AC 10A Single Phase
Air: 6Bar 10Lt/Min average
Capacity: 200ml to 5Lt
Speed: 1 - 40ppm (Packs Per Min) Subject to customer bottle specs
Conveyor: Suit standard 900mm from floor conveyor

Cap Elevator

Build: 25mm x25mm welded stainless steel frame with 2mm stainless walls
Size: 1200mm x 1200mm x 2800mm
Supply: 240V AC Single Phase
Drive: SEW MoviDrive
Belt: Movex

CH1400S Advanced Capper

Build: 50mm x 50mm welded stainless steel
Size: Approx 1200mm x1200mm x 2300mm
Supply: 240V AC 10A Single Phase
Air: 6Bar 20Lt/Min average
Capacity: 200ml to 20Lt
Speed: 10 - 40 ppm (Packs Per Min) subject to customer bottle specs
Conveyor: Suit standard 900mm from floor conveyor

Quieter, More power efficient, 80% less air use than CH1400C, Reduced CO2 footprint. Reduced operator input

Product Conveyors

Build: 50mm x 50mm welded stainless steel with 2mm stainless sides
Size: Built to specification. from 1000mm to 4000mm lengths
Supply: 240V AC 10A Single Phase
Capacity: Up to 300Kg static starting load
Height: Standard 900mm or made to your specification

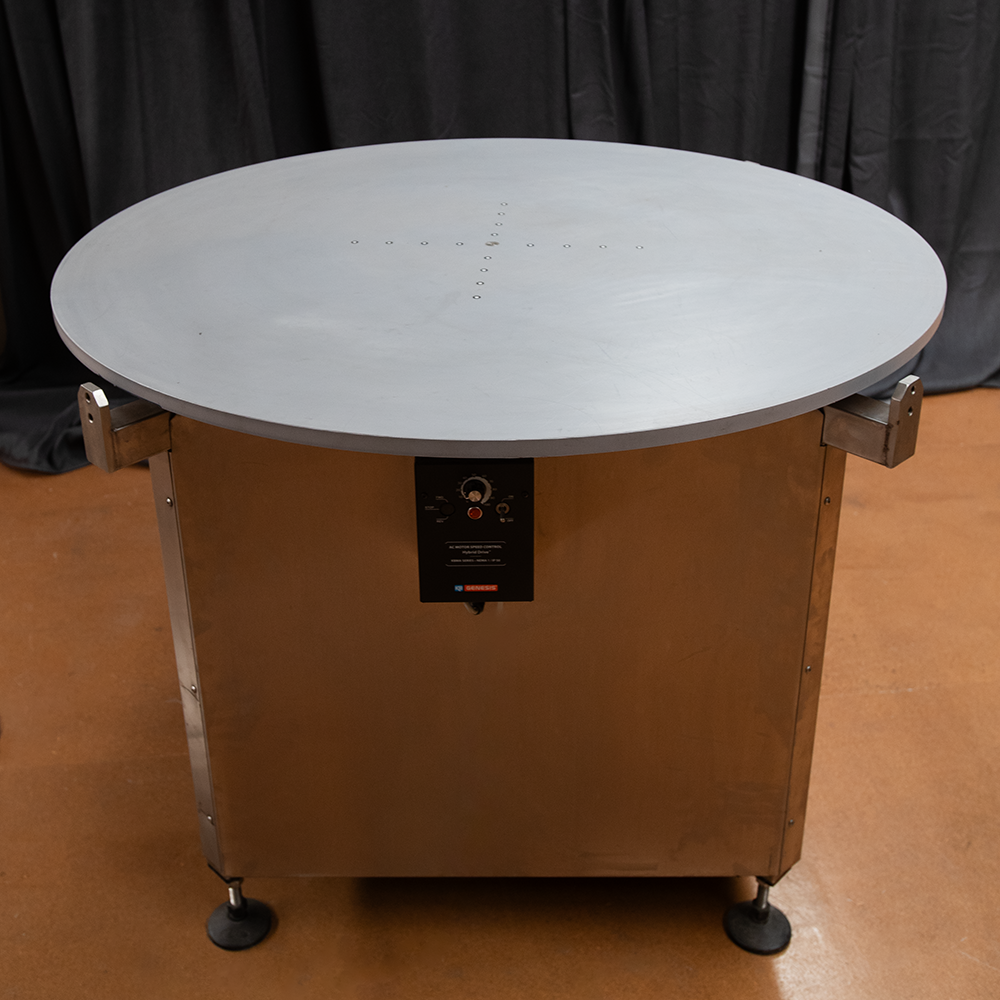

Bottle Accumulator

Build: 50mm x 50mm Stainless Steel with Polycarbonate table top
Size: Built to specification. from 1000mm footprint
Supply: 240V AC 10A Single Phase
Capacity: Up to 200kg static start load
Height: Standard 900mm or made to your specification

Capping Chuck

Build: Aluminium or Stainless Steel
Designed to suit your cap type and requirements. We have units to suit
Dorony, VIP, Bericap, Caps and Closures and many other brands.
Suitable for metal, plastic and paper lids.

Quality Control

The next level in production automation requires data. When your company image is as important as customer satisfaction, automatic quality inspection helps you get there.
